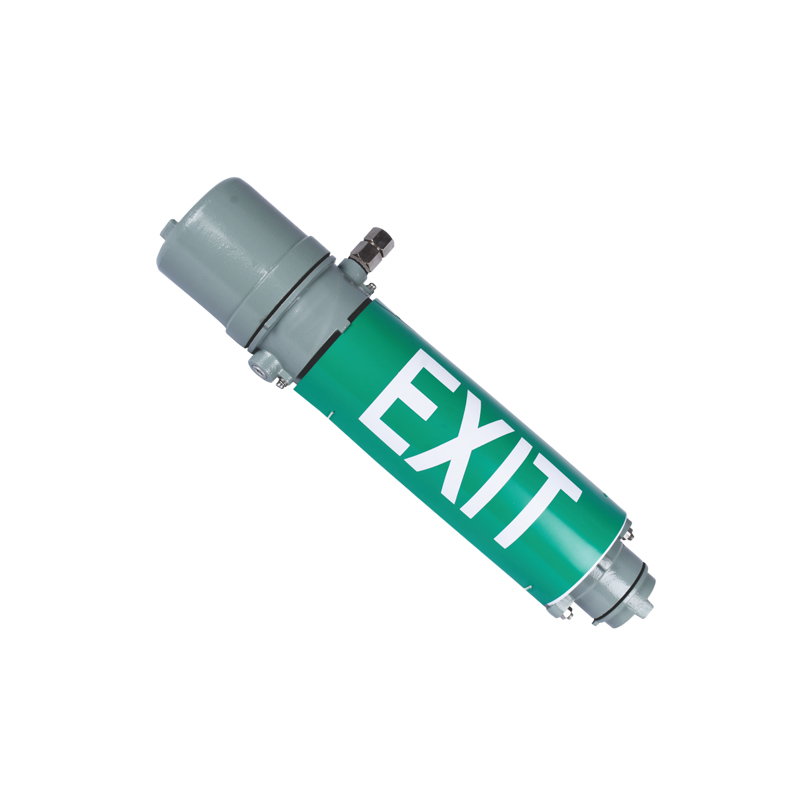

LED Emergency Flame Proof Exit / Egress Lights (EL/ M/NM/FP)

Autolite LED Emergency Flame Proof Exit / Egress Lights (EL/M/NM/FP) are designed to provide dependable emergency exit and egress illumination for applications where a robust flame-proof lighting solution is required. The product combines LED emergency lighting with a flame-proof aluminium housing, rechargeable battery operation and protected construction for demanding industrial environments.

The EL/M/NM/FP series is available in both maintained and non-maintained configurations. The maintained model is designed to remain illuminated during normal operation, while the non-maintained model is intended to operate during an emergency when the normal power supply is interrupted. Both configurations provide approximately 2 hours of emergency backup and use a 9W LED light source.

LED Emergency Flame Proof Exit / Egress Lights

Designed as part of Autolite’s range of emergency exit lights, this model provides a practical combination of emergency illumination and exit identification. Its flame-proof aluminium housing and heat-resistant clear borosil glass diffuser provide a robust construction for specified industrial applications. The IP20-rated design is intended for suitable indoor installations where the environmental conditions match the product specification.

Maintained and Non-Maintained Operation

The EL/M/NM/FP range is offered in maintained and non-maintained configurations to accommodate different emergency lighting requirements. The maintained version, LED EL/M/FP, provides continuous exit illumination during normal operation and continues to operate from its internal battery when the mains supply fails. The non-maintained version, LED EL/NM/FP, is designed primarily for emergency operation and activates when the normal power supply is interrupted.

Both models are specified with a 9W LED and approximately 2 hours of emergency backup. This self-contained configuration allows the emergency lighting unit to provide illumination without requiring a separate external emergency power supply.

Flame Proof Aluminium Housing

The product uses an aluminium housing finished with epoxy paint, providing a durable enclosure for the emergency lighting assembly. The flame-proof housing is identified as CMRI certified on the Autolite product specification. A heat-resistant clear borosil glass diffuser is used to provide durability around the light source.

The product is specified with IP20 protection and is therefore intended for suitable indoor applications where this level of environmental protection is appropriate. Selection and installation should take into account the area’s classification, environmental conditions and applicable electrical and safety requirements.

Product Specifications

Applications

Autolite LED Emergency Flame Proof Exit / Egress Lights can be considered for suitable industrial facilities, manufacturing areas, process environments, warehouses, service areas and other locations where protected emergency exit illumination is required. The maintained configuration can support continuous exit identification, while the non-maintained configuration provides emergency illumination when normal mains power is unavailable.

The combination of a 9W LED source, 2-hour emergency backup, rechargeable battery system, aluminium housing and heat-resistant borosil glass makes this product suitable for applications requiring a robust emergency exit lighting solution. The constant-current charging system supports controlled battery charging during normal operation.

With maintained and non-maintained options, flame-proof housing and self-contained emergency operation, the Autolite EL/M/NM/FP provides a practical solution for emergency exit and egress lighting in appropriate industrial applications. The correct configuration should be selected according to the site’s requirements, area classification and applicable safety standards.
