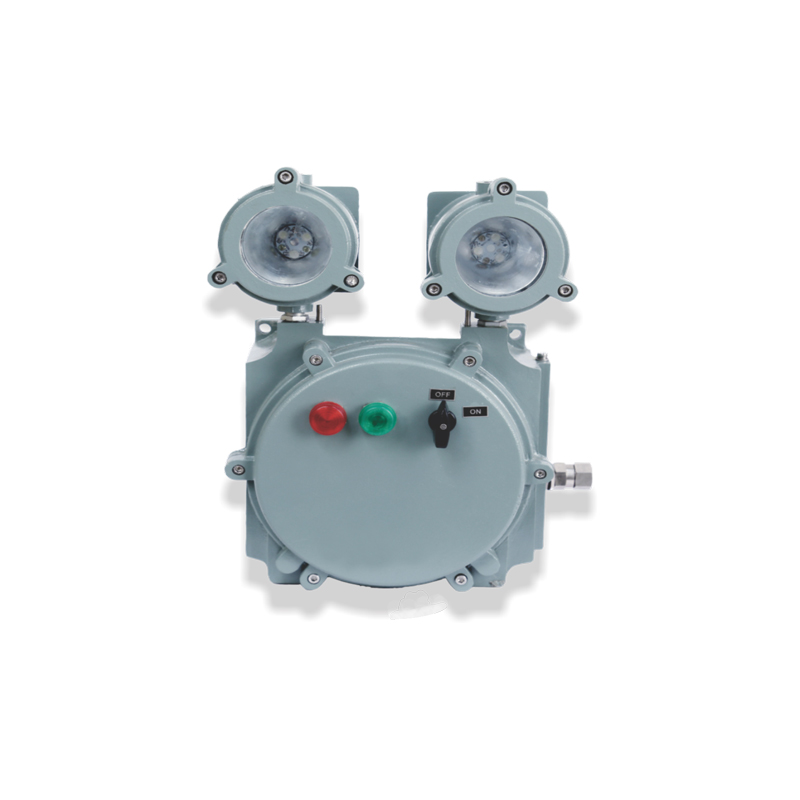

Emergency Flame Proof Twin Beam Lights (TBL/FP)

Emergency Flame Proof Twin Beam Lights (TBL/FP)

Autolite Emergency Flame Proof Twin Beam Lights (TBL/FP) are designed for emergency illumination in demanding environments where reliable lighting and a flame-proof construction are important. The twin-beam design provides directional illumination from two LED light sources, making the fitting suitable for applications where emergency visibility is required across industrial and high-risk areas.

The LED TBL/FP is a non-maintained emergency light with a specified 3-hour backup and two 18W LED light sources. Its IP65 protection rating makes it suitable for appropriate indoor and outdoor applications where protection against dust and water ingress is required. Autolite specifically positions this product for high-risk environments including power plants, metro facilities, major chemical industries and firecracker units.

Flame Proof Twin Beam Emergency Lighting

The TBL/FP is designed for applications where emergency lighting needs to be provided in environments with demanding operating conditions. Its flame-proof construction is intended for use in selected high-risk areas where the lighting equipment needs to be appropriately designed for the surrounding environment.

The twin-beam configuration uses two LED light sources to provide directional emergency illumination. This makes the flame-proof twin beam emergency light suitable for industrial facilities, infrastructure projects and other locations where dependable emergency lighting is an important part of the overall safety system.

Designed for High-Risk Industrial Areas

Autolite TBL/FP can be considered for applications where conventional emergency lighting may not be appropriate for the operating environment. The product page identifies power plants, metro facilities, major chemical industries and firecracker units as examples of high-risk applications.

Such facilities can contain areas where emergency illumination must be available during a mains power interruption. A suitable hazardous-area emergency light can form part of a broader emergency preparedness and life-safety system, helping provide illumination for personnel movement and operational response when normal lighting is unavailable.

Non-Maintained Emergency Operation

The LED TBL/FP is specified as a non-maintained emergency light. In this operating configuration, the emergency illumination is intended to operate when the normal power supply fails rather than remaining continuously illuminated during normal mains operation.

The product provides a specified 3-hour backup, giving the emergency lighting system an extended operating period during a power interruption. This makes it suitable for facilities where emergency illumination may be required for an extended duration following a mains failure.

Twin 18W LED Light Sources

The TBL/FP uses two 18W LED light sources, providing a combined LED configuration within the twin-beam emergency lighting arrangement. LED technology provides an efficient lighting source for emergency applications while allowing the fitting to deliver focused illumination from two beam units.

The twin-beam arrangement can be useful where emergency illumination needs to cover more than one direction or where directional lighting is preferred for a particular installation. The exact positioning and mounting arrangement should be selected according to the requirements of the facility.

IP65 Protection

The product carries an IP65 protection rating. This makes the TBL/FP suitable for applications where protection from dust and water jets is required within the limits of its specified rating. The IP65 construction also supports its use in suitable outdoor or demanding industrial environments.

Before installation, the environmental conditions of the intended location should be assessed to ensure that the product configuration and protection rating are appropriate for the application.

Product Construction and Charging System

The product information specifies an aluminium housing finished with epoxy paint. The design incorporates a rechargeable SLA battery and constant-current charging system. A red LED indicator provides a charging indication, allowing the charging condition to be identified during normal charging operation.

The specified recharging period is approximately 10 to 12 hours. The product operates from a 230V, 50Hz input, while other input options are available according to the product information.

Standards and Product Approval

The Autolite product page states that the TBL/FP conforms to IS 9583-1981 and IS 10322 and identifies the product as approved by CMRI. These are product claims published by Autolite and should be evaluated against the specific project, installation and regulatory requirements before procurement.

Why Choose Autolite TBL/FP?

Autolite Emergency Flame Proof Twin Beam Lights combine a twin-LED emergency lighting configuration with flame-proof construction, rechargeable battery backup and IP65 protection. The 3-hour backup, two 18W LED sources and aluminium housing make the TBL/FP suitable for selected industrial and high-risk applications where emergency illumination is required.

For power plants, metro facilities, chemical industries and other appropriate high-risk environments, the TBL/FP can be incorporated into an emergency lighting system designed around the specific safety and regulatory requirements of the facility. Higher-backup options are also available on request for applications requiring a longer emergency operating period.

Choose Autolite TBL/FP when a robust flame-proof twin-beam emergency lighting solution is required for suitable industrial and high-risk environments.

Specifications
