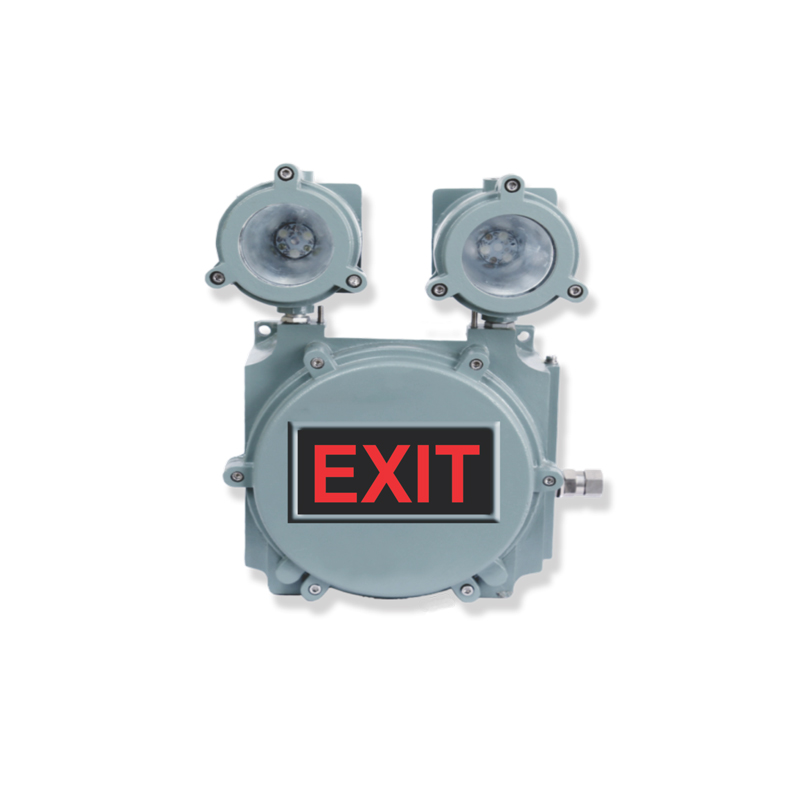

Emergency Flame Proof Multi Lights (LED ML/FP/EXIT)

Autolite Emergency Flame Proof Multi Lights (LED ML/FP/EXIT) are designed to provide dependable emergency illumination and exit indication in demanding environments where flame-proof construction and enhanced protection are required. These emergency multi lights can be used for both indoor and outdoor applications and are particularly suitable for industrial and commercial areas where reliable emergency lighting is an important part of the overall safety system.

The LED ML/FP model operates as a non-maintained emergency light, while the EXIT configuration provides a maintained illuminated exit indication. Both configurations are designed with a 3-hour emergency backup, helping provide continued illumination during a mains power failure. The product uses two 18W LED light sources and is housed in an IP65-rated enclosure for protection against dust and water ingress.

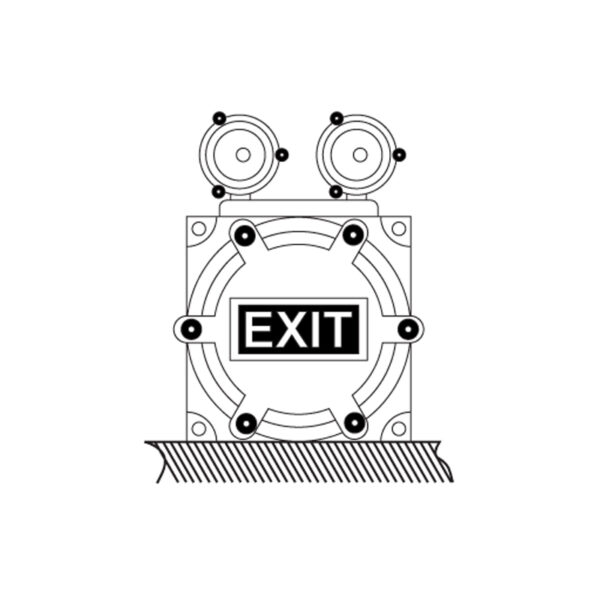

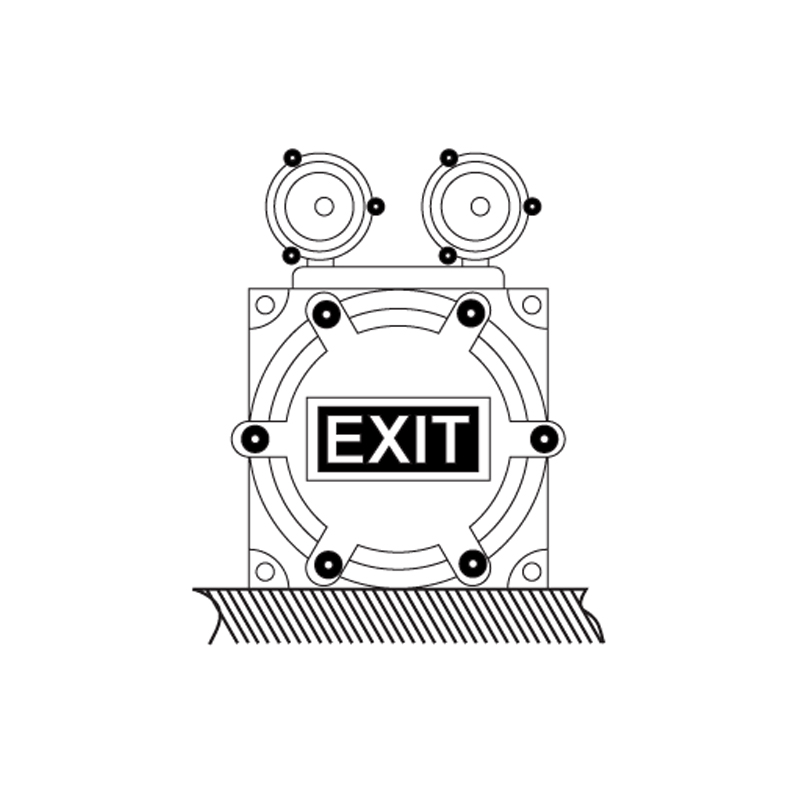

Emergency Flame Proof Multi Lights with EXIT Option

The Emergency Flame Proof Multi Lights are suitable for locations where emergency illumination and clear exit identification need to be combined in one robust lighting solution. The EXIT version incorporates an illuminated EXIT indication to help identify an emergency escape direction when normal electrical lighting is unavailable. This makes the product suitable for industrial premises, plant areas, service facilities, commercial spaces and other applications where emergency exit visibility is important.

Flame Proof Construction for Demanding Applications

The product is built around a flame-proof enclosure using aluminium alloy construction, with the housing finished using epoxy paint. The product specification identifies the flame-proof protection as Ex-d and references IS:2148/1981 and IS:13346/1992 for the protection arrangement. The specified area classification includes Zone 1 and Zone 2 applications with Gas Groups IIA and IIB, making the product suitable for specified hazardous industrial environments when the installation requirements are appropriately matched to the site conditions.

The combination of flame-proof construction, IP65 protection, rechargeable emergency operation and LED illumination makes the Emergency Flame Proof Multi Lights a practical solution for applications requiring robust emergency lighting. The heat-resistant clear borosil glass further supports the product’s suitability for demanding operating environments.

Reliable Emergency Illumination and Exit Indication

During normal operation, the maintained EXIT configuration can provide continuous exit identification, while the non-maintained ML/FP configuration is intended to operate during an emergency condition. The self-contained rechargeable design allows the unit to continue operating when the primary power supply is interrupted, supporting emergency movement and visibility.

Autolite Emergency Flame Proof Multi Lights can therefore be considered for industrial facilities, plant rooms, process areas, warehouses, commercial premises and other locations where flame-proof emergency lighting and emergency exit indication are required. Product selection and installation should always be based on the area’s classification, environmental conditions and applicable electrical and safety requirements.

Specifications
