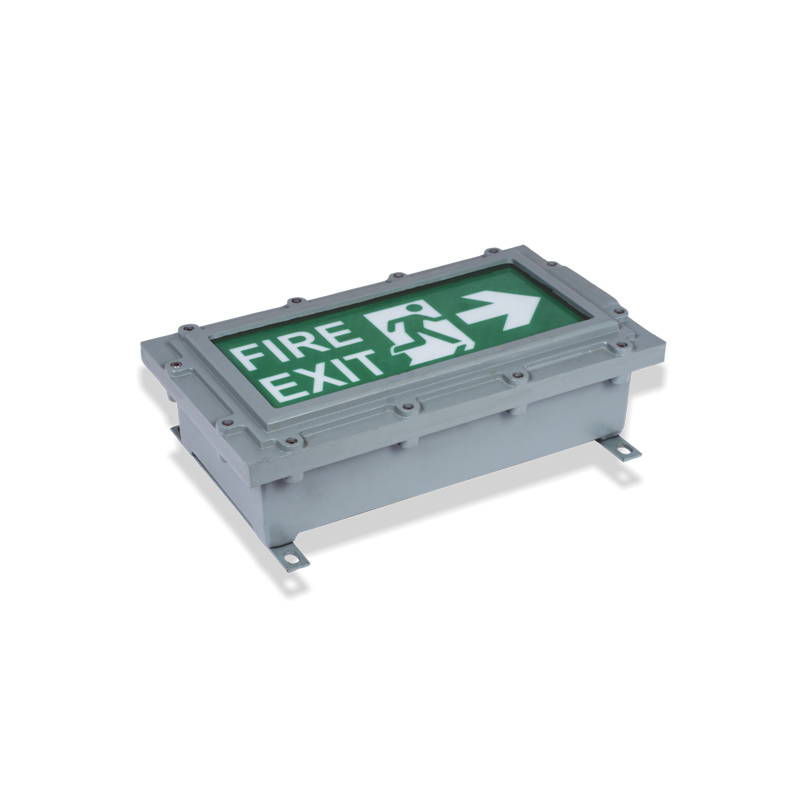

Emergency Flame Proof Exit / Egress Lights (LED EL/M/NE/FP/W)
An attractive range of Emergency Flame Proof Exit / Egress Lights approved by CMRI in aluminium and with Self Contained Ni-Mh / Ni-Cd Batteries in Non-Maintained and Maintained mode.
The self-contained rechargeable battery system eliminates the need for a separate emergency power source for the fitting. The charging circuit maintains the battery during normal mains operation, while the red LED charging indicator provides a convenient visual indication of the charging status.
Applications
- Industrial and manufacturing facilities
- Specified hazardous and flame-proof areas
- Process plants and plant rooms
- Warehouses and industrial storage areas
- Commercial and service facilities
- Emergency escape routes
- Exit and egress pathways
- Areas requiring protected emergency exit illumination
- Indoor and outdoor applications requiring IP65-rated emergency lighting
Description
Autolite Emergency Flame Proof Exit / Egress Lights (LED EL/M/NE/FP/W) are designed to provide reliable emergency exit and egress illumination in demanding industrial and commercial environments. Developed with a robust flame-proof enclosure, IP65 protection and self-contained rechargeable battery operation, these lights are suitable for applications where dependable emergency visibility and appropriately protected equipment are required.
The product is available in maintained and non-maintained configurations, allowing it to be selected according to the requirements of the installation. The maintained version can provide continuous exit illumination during normal operation, while the non-maintained configuration is intended to operate when normal mains power is interrupted. With a 5W LED source and approximately 2 hours of emergency backup, the unit provides a practical solution for emergency escape and exit identification.
Emergency Flame Proof Exit / Egress Lights
The Emergency Flame Proof Exit / Egress Light is built for applications where emergency exit signage needs to be combined with a rugged, protected enclosure. Its flame-proof aluminium housing and IP65-rated construction help the fitting withstand demanding environmental conditions while protecting the internal lighting and electrical components.
Key Features
- Available in maintained and non-maintained emergency lighting configurations.
- Provides approximately 2 hours of emergency battery backup.
- Uses a 5W LED light source for efficient exit and egress illumination.
- IP65 protection helps protect the enclosure against dust and water ingress.
- Robust cast aluminium housing finished with epoxy paint in Shade 631 as specified under IS:5.
- CMRI-certified flame-proof housing for specified applications.
- Heat-resistant clear borosil glass provides durability for demanding operating environments.
- Self-contained Ni-MH or Ni-Cd rechargeable battery options are available.
- Constant-current charging technology supports controlled battery charging.
- A red LED indicator provides a visual indication of battery charging.
- Typical recharge time is approximately 16 to 24 hours.
- Standard electrical input is 230V, 50Hz, with other input options available as required.
- Higher-backup versions can also be made available on request.
Robust Flame Proof Construction
The Emergency Flame Proof Exit / Egress Light uses a cast aluminium enclosure with an epoxy paint finish to provide a durable housing for the emergency lighting assembly. The published specification identifies Ex-d protection and references applicable Indian standards for the flame-proof enclosure and IP65 protection. This construction makes the product suitable for specified hazardous-area applications where the equipment must be selected according to the area’s classification and applicable safety requirements.
The heat-resistant clear borosil glass adds another layer of durability to the lighting assembly. Combined with IP65 protection, the enclosure is designed to provide reliable operation in environments where exposure to dust, moisture and demanding industrial conditions may be a concern.
Maintained and Non-Maintained Operation
Autolite offers this flame-proof exit / egress light in configurations designed for different emergency lighting requirements. A maintained configuration can keep the exit indication illuminated during normal operation and continue operating from its internal battery during a mains failure. A non-maintained configuration is intended to activate during an emergency power interruption.
With its flame-proof cast aluminium housing, IP65 protection, 5W LED source, rechargeable battery system and maintained/non-maintained operating options, Autolite Emergency Flame Proof Exit / Egress Lights provide a dependable solution for emergency exit identification and egress illumination in demanding applications. The product should be selected and installed according to the area’s classification, environmental conditions, electrical requirements and applicable safety standards.
Technical Specification
- Product Type: Emergency Flame Proof Exit / Egress Light
- Configuration: Maintained / Non-Maintained
- LED: 5W
- Emergency Backup: Approximately 2 hours
- Protection: IP65
- Housing: Cast aluminium with epoxy paint finish
- Glass: Heat-resistant clear borosil glass
- Battery: Ni-MH / Ni-Cd rechargeable battery
- Charging: Constant-current charger
- Charging Indicator: Red LED
- Recharge Time: Approximately 16–24 hours
- Input: 230V, 50Hz; other options available
- Higher Backup: Available on request
Specifications
Specifications
| MODEL : LED EL / M / FP (W) | NODEL : LED EL/ NE / FP (W) |
|---|---|
| Maintained | Non-Emergency |
| 2 hrs. Backup | Wall Mount |
| 5 Watt LED | 5 Watt LED |
| IP 65 | IP 65 |
